Aluminum LED Channel XT66
In stock
The Aluminum LED Channel XT66 features a sleek silver profile and includes a PC milky diffuser, ideal for enhancing LED lighting applications.
INCLUDES

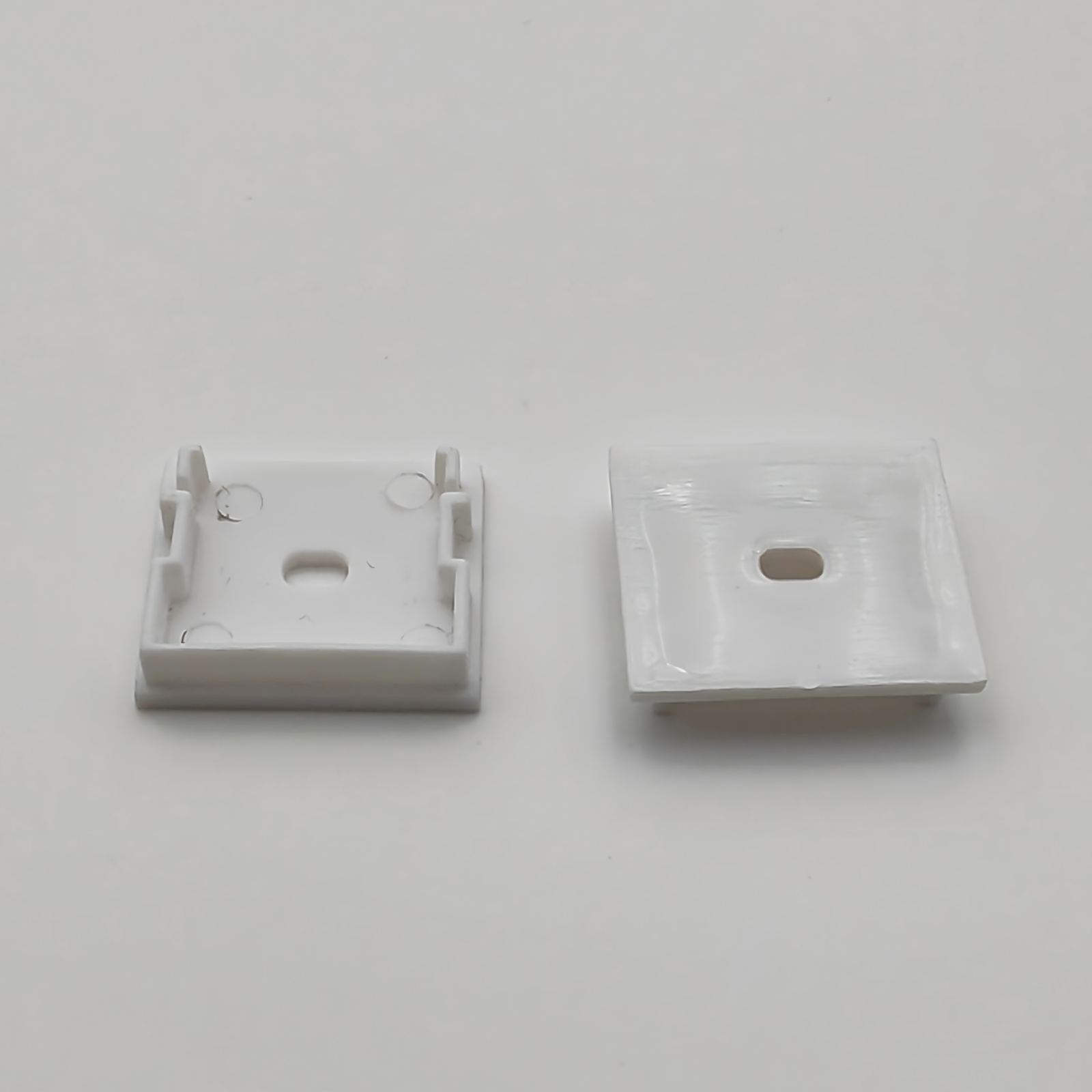

2x END CAPS
Introducing the Aluminum LED Profile XT66, the ultimate solution for modern lighting enthusiasts who demand nothing but the best! This sleek silver masterpiece transforms any LED strip into a dazzling spectacle, boasting a premium PC milky diffuser cover that ensures your light radiates with velvet smoothness. Elevate your space to legendary status and experience illumination like never before with the stunningly robust XT66. Shine brighter, bolder, and more brilliantly than ever!

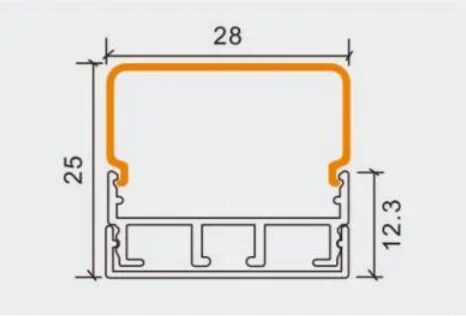

| Dimensions | 1.10 × 0.98 in |
|---|---|
| LENGTH | 8′ |
| PROFILE COLOR | Silver |
| COVER OPTION | PC Milky Diffuser |
| MATERIAL | ANODIZED ALUMINUM |
T/L Shape MN20-B10C-2P-T-CV
The T/L Shape MN20-B10 C-2 P-T-CV is a mono-color connector designed for surface mount or chip on board applications. It features a 0.4" PCB width and has two solder pads. The connector supports a voltage range of DC 3-24 V and offers an ingress protection of IP20. Made with polycarbonate housing and high precision copper conductor, it ensures durability and reliability for various electronic connections without any wire.
Strip to Power MN20-XB8C-2P/L10CM
The Strip to Power MN20-XB8 C-2 P/L10 CM is a high-quality connector designed for efficient power transfer. It features a 3.9-inch cable length and an SMD/COB connector type, suitable for PCBs with a width of 0.3 inches. This mono-color connector has two solder pads and offers IP20 ingress protection, supporting a voltage range of DC 3-24 V. Constructed with a polycarbonate housing and high precision copper conductor, it ensures durability and reliable performance.
T/L Shape MN20-B8C-2P-T-CV
The T/L Shape MN20-B8 C-2 P-T-CV is a high-precision SMD/COB connector designed for PCB widths of 0.3 inches. It features a two-solder pad configuration and is made of polycarbonate housing with a high-precision copper conductor. Suitable for DC voltages from 3 to 24 volts, it offers ingress protection rated at IP20. This mono-color connector is ideal for applications requiring reliable connectivity.
LED Strip SMD 2835 5000K
The LED Strip SMD 2835 5000 K offers bright illumination with 120 LEDs per meter and a luminous flux of 700 lm/m. Operating at 24 V, it consumes 8 watts per meter. The strip has a pixel pitch of 0.3 inches and a cutting unit of 2.0 inches, making it versatile for various applications. With a color temperature of 5000 K, it provides a cool white light. The roll is 16.4 feet long and features an FPC width of 0.2 inches, with an IP20 ingress protection rating.
LED Strip SMD 2835 3000K
The LED Strip SMD 2835 3000 K offers a warm glow with a color temperature of 3000 K. Designed with SMD2835 LEDs and operating at 24 V, it features 120 LEDs per meter, delivering 700 lumens per meter with 8 watts of power consumption. This strip has a pixel pitch of 0.3 inches, a cutting unit of 2.0 inches, a flexible PCB width of 0.2 inches, and an IP20 ingress protection, making it suitable for indoor use. It comes in a roll size of 16.4 feet, providing efficient and versatile lighting solutions.
LED Strip SMD 2835 2700K
The LED Strip SMD 2835 offers warm lighting with a color temperature of 2700 K. It features 120 LEDs per meter, ensuring bright illumination with a luminous flux of 700 lm/m. Designed with a pixel pitch of 0.3 inches and a cutting unit of 2.0 inches, this strip operates at 24 V and consumes 8 watts per meter. With an FPC width of 0.2 inches and ingress protection rating of IP20, it is suitable for indoor use. The roll size is 16.4 feet, ideal for various lighting applications.
LED Strip COB 3000K
The LED Strip COB 3000 K delivers warm lighting with a color temperature of 3000 K. It features 512 LEDs per meter and a luminous flux of 1000 lm/m, ensuring bright illumination. Designed for 24 V input, it consumes 10 watts per meter. The strip is 0.3" wide and offers a cutting unit of 0.07". With an IP20 rating, it is suitable for dry indoor environments. The roll size is 16.4 feet, making it ideal for various applications.
Power supply Mean Well LRS-100-24
The Mean Well LRS-100-24 is a high-performance power supply with a compact design measuring 5.1" x 3.8" x 1.2". It features an input voltage range of 100~240 VAC and delivers an output voltage of 24 V with 100 W input power. Encased in a durable metal case, it operates in an On/Off mode and has an IP20 ingress protection rating, making it ideal for various applications.
